Overview

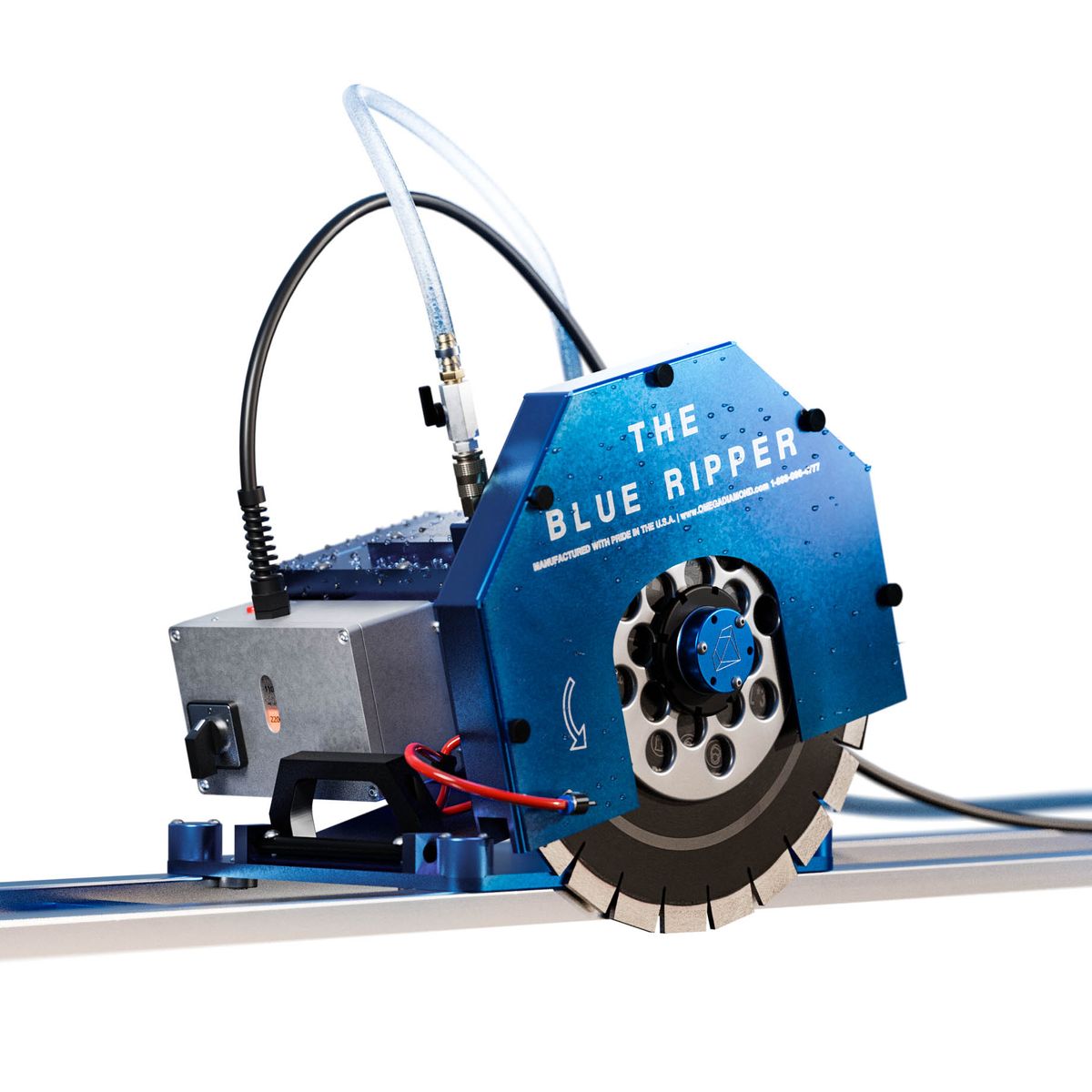

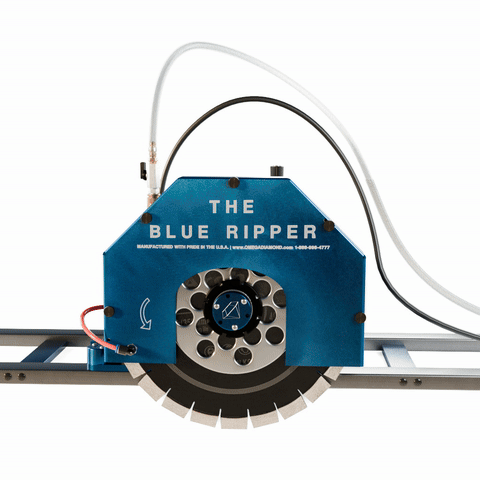

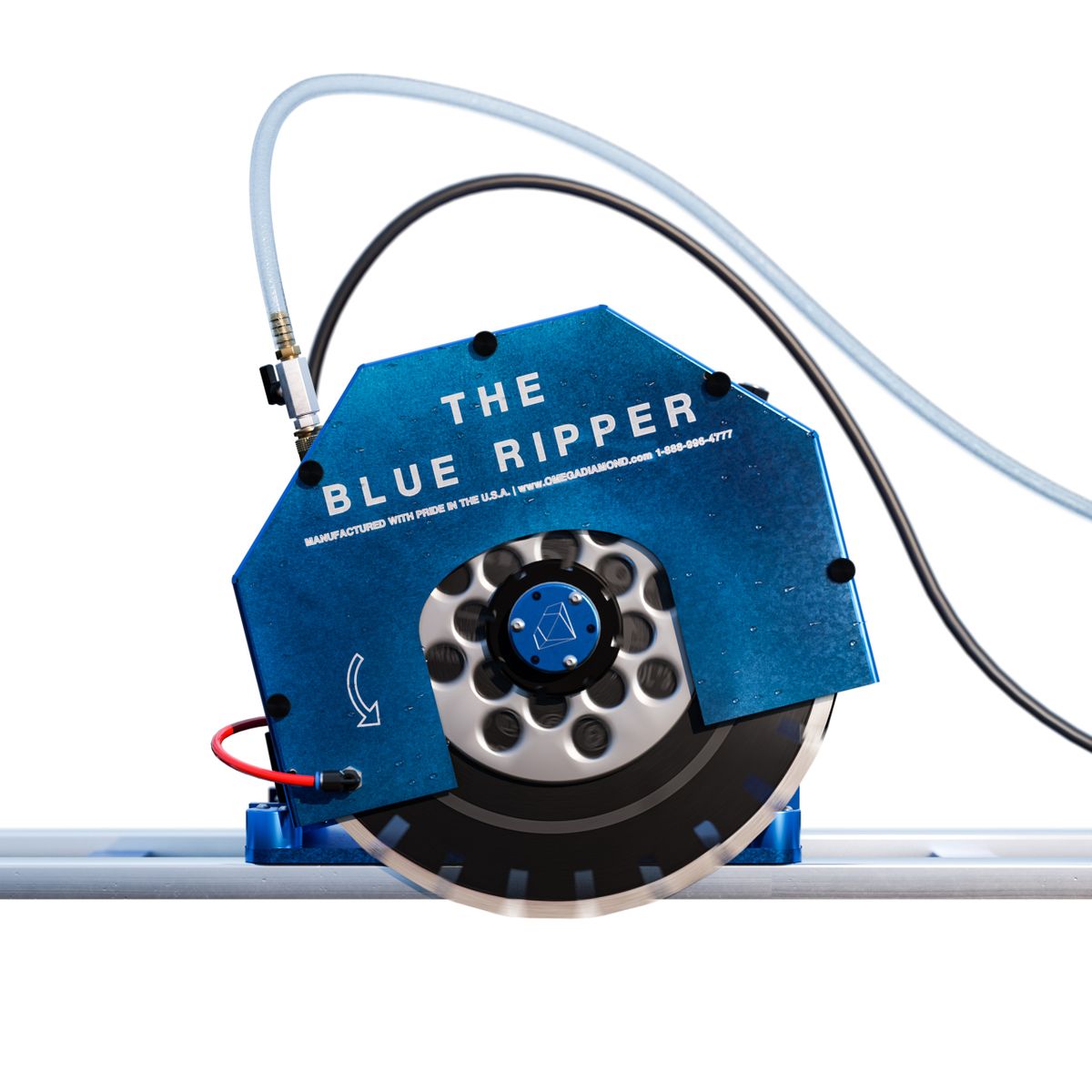

The Blue Ripper™ Rail Saws offer a cost-effective alternative to high-end bridge saws, providing impressive speed, accuracy, and quality of work at a fraction of the cost. These saws are designed to easily cut through 5 cm thick stone while completing 10 feet in less than 60 seconds.

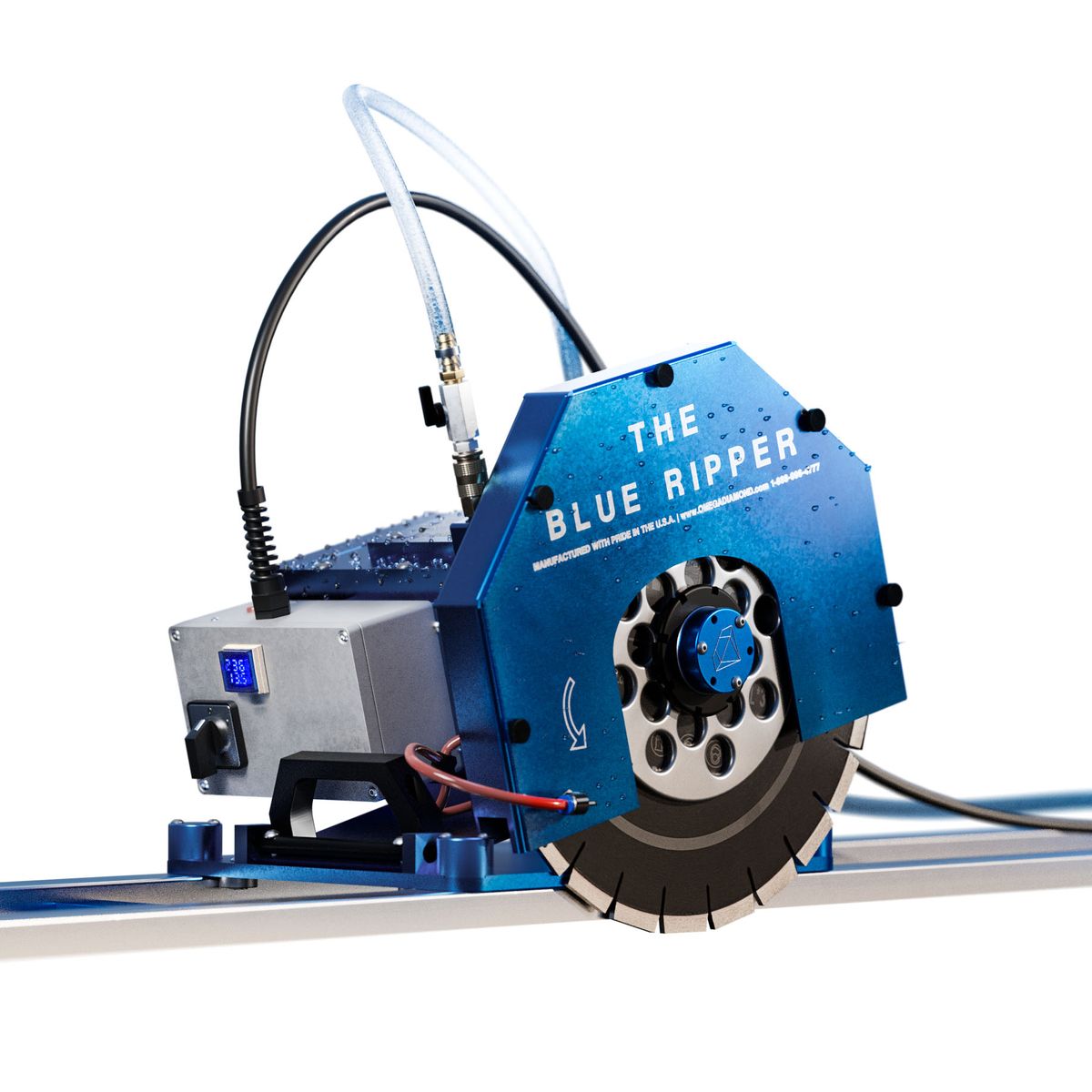

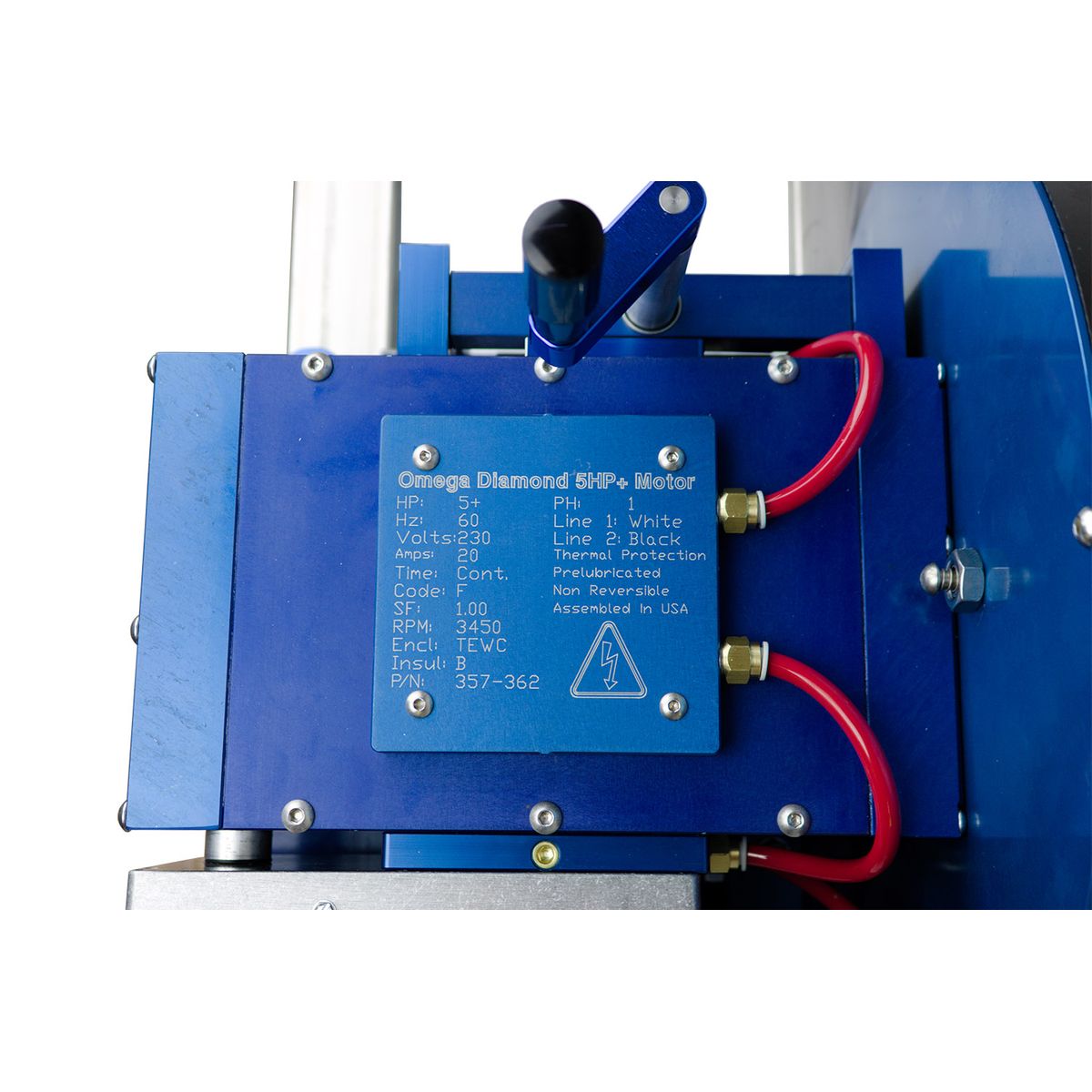

5 Hp Specs

Cutting Depth: 5 cm.
Speed: 10 ft. in 39 seconds on 2 cm "Absolute Black" granite.
Weight: 73 lbs.
RPM:  3450 rpm
Power: single-phase 220-240 volt power.
Blade Size: 14-inch with 20 mm segments.

Rail Not Included: Rails are available as an optional addition to your purchase but are not automatically included with the saw.

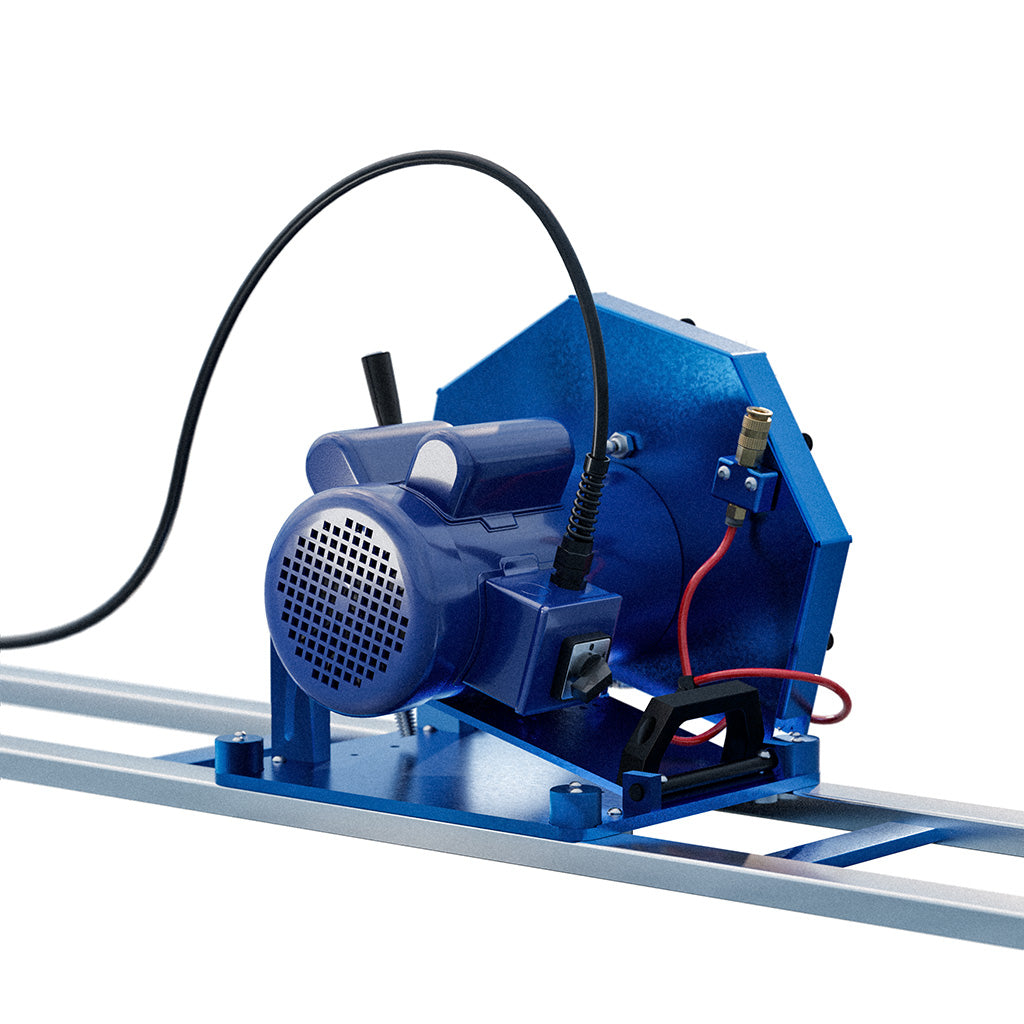

3 Horsepower Air-cooled

Cutting Depth: 5 cm.
Speed: 10 ft. in 59 seconds on "Absolute Black" granite.
Weight: 71 lbs.
RPM:  1750 RPM.
Power: single-phase 220-240 volt power.
Blade Size: 14-inch with 20 mm segments.

Rails Not Included: Rails are available as an optional addition to your purchase but are not automatically included with the saw.

Notes

The product may show minor usage (dust, etc.) due to factory testing before shipping.

Blades shipped with the product may not match images. We are constantly testing to find faster blades, and we ship each new machine with the best we have at the time of shipping. All new Blue Ripper Sr. Rail Saws can accept blades up to 15 1/2 in. diameter with a 60 mm arbor hole. All Blue Ripper Sr. Saws Manufactured before April 1st, 2023 can accept blades up to 14-1/2 inch (368mm) in diameter with a 60 mm arbor.

DO NOT GREASE MOVING PARTS. Many of our customers have thought that greasing the saw's threaded vertical adjustment shaft or rear hinge pivot will help with the operation of the saw, and it does - but it also heavily reduces the lifespan of those parts: the granite dust combines with the grease to create a highly aggressive lapping slurry that will wear the parts at a very fast rate. If you must lubricate the machine, use a dry spray-on lubricant.

 Please note that this saw requires Blue Ripper Rails™ to operate as designed. If you need rails, please see the Blue Ripper Rails™ page and call us to order.

To order a saw with Blue Ripper Rails (basic edition combo pack) please call 1-530-889-8977 and ask.
